TORQUE TRANSDUCER

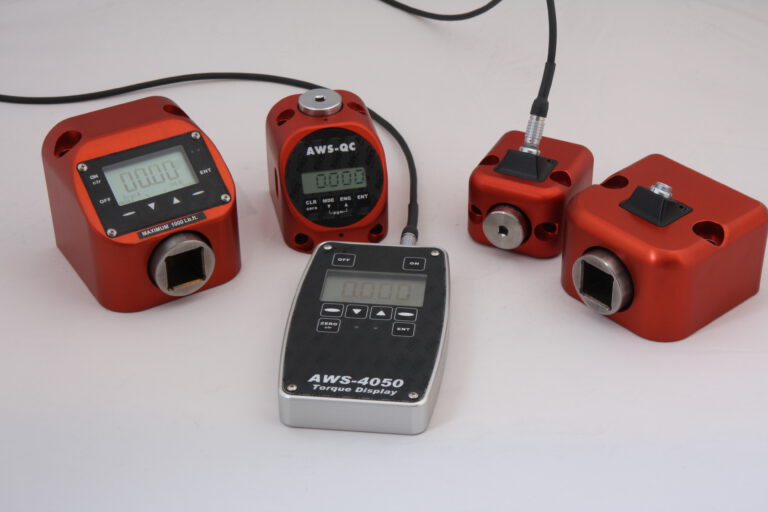

The AWS stationary transducers are mounted in a housing that is designed with through holes for mounting to a bench or a mounting plate. There are two standard sizes; one small housing for all transducers up to 250 Lbf Ft and the large housing for transducers up to 2000 Lbf.Ft.

Our stationary transducers are supplied with internal square drives; 1/4″, 3/8″, 1/2″, 3/4″ and 1″ depending on capacity. Various rundown fixtures are available that are designed to fit in the internal square drive providing a means of testing power tools.

Transducers are manufactured from stainless steel, precision machined, strain gaged and thouroughly tested in our calibration laboratory for accuracy and repeatability.

Features

  • System accuracy of ±0.5% of indicated reading, top 90% of range.
  • Solid machined billet aluminum housing.
  • Designed to facilitate vertical or horizontal tool testing.
  • Readily accepts rundown  fixtures for testing power tools.
  • Our Intellect transducers are “plug and play” with AWS series instruments.

Specifications

  • Accuracy 0.5% bidirectional top 90% of range.
  • Overload 150% of full scale
