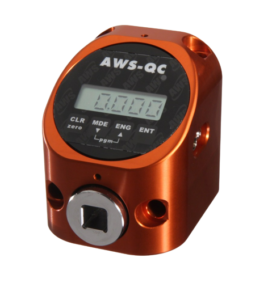

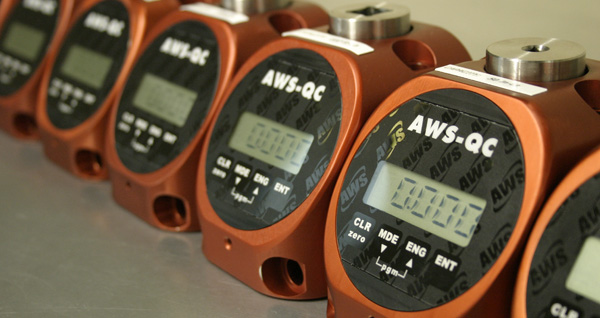

Torque Tester

The AWS-QC testers, have a system accuracy of 1%
indicated reading for top 90% of tester range. This entry level
torque tester is well suited for hand or power tool validation.
Rundown fixtures are provided for power tool testing.
The creative design of the housing provides for vertical or
horizontal tool testing. The range of QC tester models is from 50
Ozf In full scale to models in excess of 1000 Lbf Ft full scale.
Rundown Fixtures
1/4″ and 3/8″ rundown fixtures (up to 1000 Lbf In) are included, 1/2″,
3/4″ and larger rundown kits are available but they are optional and
priced seperately.

Features

System accuracy of ±1% of indicated reading, top 90% of range.
Solid machined billet aluminum housing.
Designed to facilitate vertical or horizontal tool testing.
Intuitive User interface.
Same feature set as our other AWS instruments; including Peak, First Peak
and Track modes, upper and lower limits, memory and serial data output.

Specifications
Accuracy – 1% bidirectional
Engineering
Units – Eight selectable:Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
Modes – Track, Peak, or First Peak
Housing – Heavy Duty Aluminum
Batteries – Rechargable NiMH batteries provide 10 -12 hours of continuous use
Dimensions – 3.125″ x 3.25″ x 3.75″
Weight – 2.5 lbs.(approx.)
Display – Segmented, Four Active Digits with menus
